目录

• 一、需求说明

• 二、效果图

• 三、项目结构

• 四、核心源码

• ♻️Java依赖与接口

• ♨️Docker相关源码

一、需求说明

编写一个SpringBoot + Redis 的微服务项目，并提供 hello接口，每访问一次接口，计数器+1

二、效果图

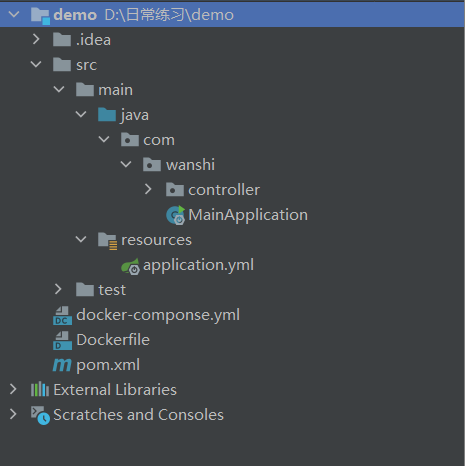

三、项目结构

目录说明

docker-compose.yml ：项目的启动文件，配置编排等

Dockerfile：项目上线所需要的依赖，以及启动方式

四、核心源码

♻️Java依赖与接口

依赖文件

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.5</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>org.example</groupId>
    <artifactId>demo</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>io.lettuce</groupId>
                    <artifactId>lettuce-core</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>redis.clients</groupId>
            <artifactId>jedis</artifactId>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>

        <resources>
            <resource>
                <directory>src/main/java</directory>
                <includes>
                    <include>**/*.xml</include>
                </includes>
                <filtering>false</filtering>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
            </resource>
            <resource>
                <directory>libs/</directory>
                <targetPath>libs</targetPath>
                <includes>
                    <include>**/*.jar</include>
                </includes>
            </resource>
        </resources>
    </build>

</project>

接口

HelloController

package com.wanshi.controller;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RestController;
/**
 * @author whc
 * @date 2022/6/9 10:06
 */
@RestController
public class HelloController {
    @Autowired
    private StringRedisTemplate redisTemplate;
    @GetMapping("/hello")
    public String hello() {
        Long views = redisTemplate.opsForValue().increment("views");
        return "hello, xiaowang, views:" + views;
    }
}

配置文件

application.yml

server:
  port: 8080
spring:
  redis:
    host: redis

♨️Docker相关源码

Dockerfile

FROM java:8
COPY *.jar /app.jar
CMD ["--server.port=8080"]
EXPOSE 8080
ENTRYPOINT ["java", "-jar", "/app.jar"]

docker-compose.yml

version: '3.8'
services:
  xiwoangapp:
    build: .
    image: xiaowangapp
    depends_on:
      - redis
    ports:
      - "8080:8080"
  redis:
    image: "redis:3.0.7"

五、部署项目

打包后端项目通过命令

mvn clean package

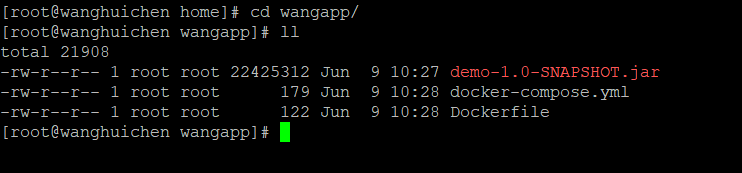

jar包与配置文件上传至Linux服务器，新建指定文件夹（通过Filezilla上传文件）

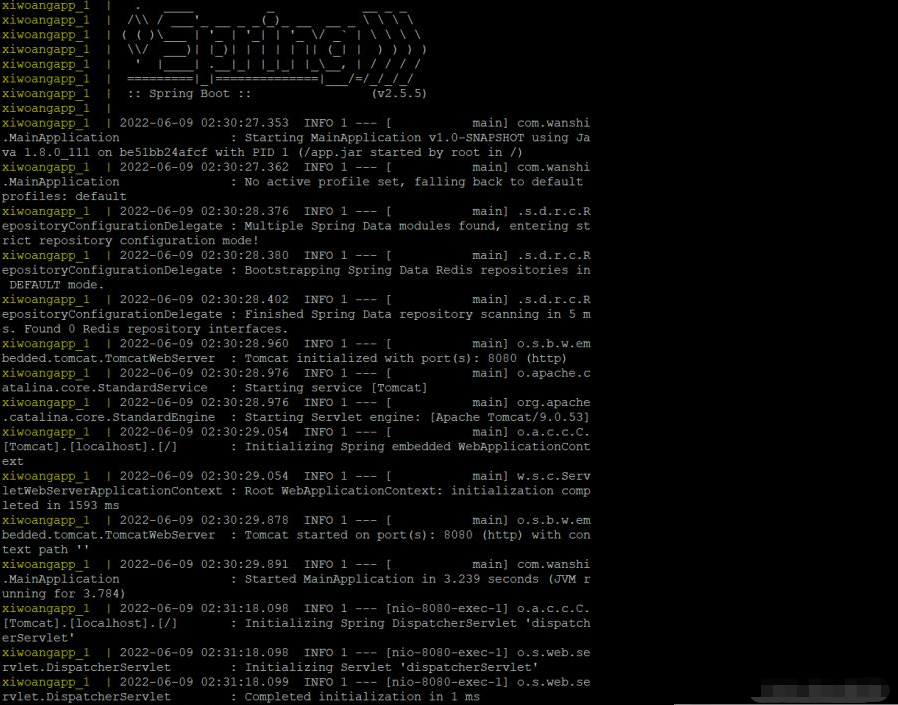

执行命令启动

docker-compose up

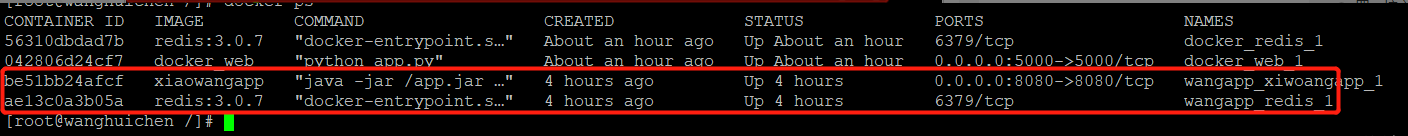

部署成功后我们查看服务是否启动

docker ps

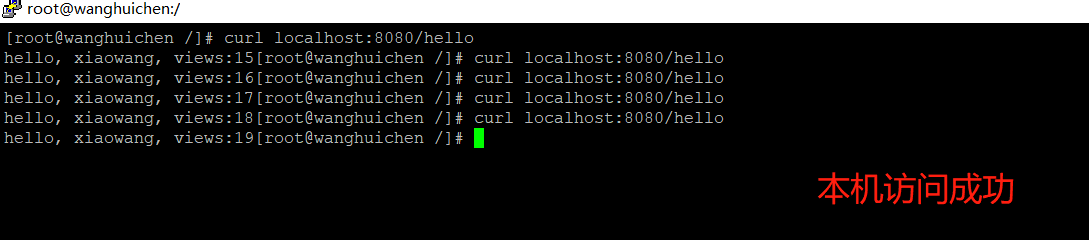

本机进行访问

curl localhost:8080/hello
